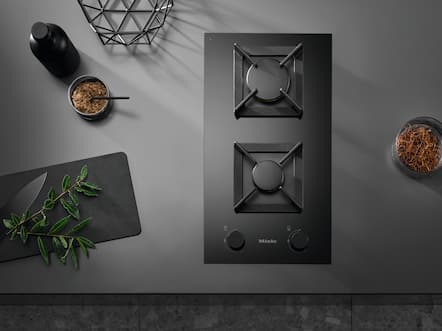

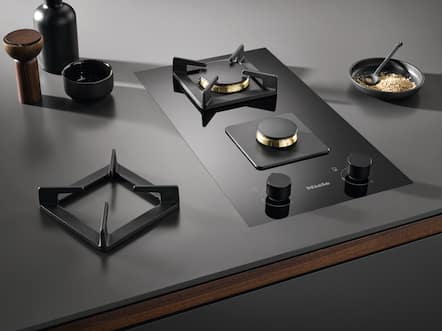

CS 7152 FL SmartLine element

with two burners
  • Simple controls -single-handed operation via rotary dial control
  • Elegant design – for flush or raised installation
  • Seamlessly integrates with any SmartLine element
  • Particularly versatile - 1 medium burner and 1 large burner
  • Easy cleaning - dishwasher-safe ComfortClean pot rests
More Details
$ 19,000.00
Unavailable online. Please contact our authorised dealers.
CS 7152 FL SmartLine element
Notify me when available
Description
12106160
  • Simple controls -single-handed operation via rotary dial control
  • Elegant design – for flush or raised installation
  • Seamlessly integrates with any SmartLine element
  • Particularly versatile - 1 medium burner and 1 large burner
  • Easy cleaning - dishwasher-safe ComfortClean pot rests
Benefits
Design in detail

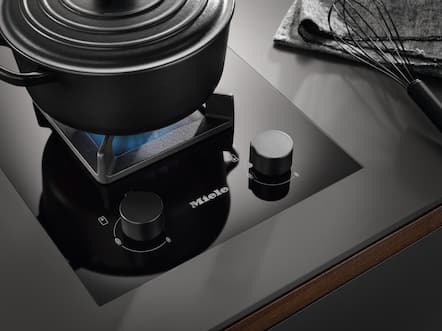

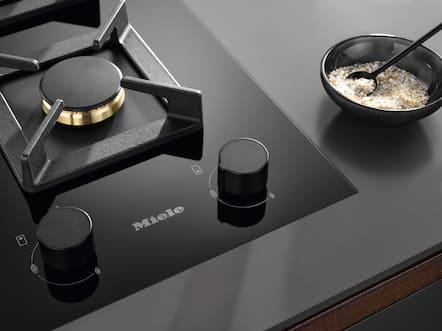

Metal knobs
Design in detail
Perfect convenience: the gas elements can be intuitively operated via high-quality metal knobs.
Flame failure monitor for maximum safety
GasStop
Flame failure monitor for maximum safety
Reassuring: if the flame is extinguished, for example by a draught, the continued supply of gas is prevented.
Easy ignition of the flame
Electronic ignition with single-handed operation
Easy ignition of the flame
No need for matches or lighters: automatic ignition of burners thanks to intelligent technology.
Efficiently protects and makes cleaning easier
ComfortClean pot rests
Efficiently protects and makes cleaning easier
Fast cleaning: remove the pot rests and wash in the dishwasher. Keeps gas hobs looking good for longer.
Specifications
Dimensions in mm (width)
288
Dimensions in mm (height)
92
Casing height incl. connection box in mm
92
Dimensions in mm (depth)
520
Cutout dimensions in mm (width) with surface-mounted installation
268
Cutout dimensions in mm (depth) with surface-mounted installation
500
Internal cutout dimensions in mm (width) with flush installation
268
Internal cutout dimensions in mm (depth) with flush installation
500
External cutout dimensions in mm (width) with flush installation
292
External cutout dimensions in mm (depth) with flush installation
524
Weight in kg
7
Total rated load in kW
5.1
Voltage in V
230
Frequency in Hz
50-60
Length of supply lead in m
1.4
Position
rear centre
Type
High-speed burner
Size in mm
Ø 140-260
Max. rating in W
3200
Position
front centre
Type
Standard burner
Size in mm
Ø 120-240
Max. rating in W
2000
Operation via sensor controls
Knob
Operation via knobs
Electronic ignition with single-hand operation
CSFG 7000 FlameGuard
Mains cable
Jets for natural gas
Jets for liquid gas
Elegant glass ceramic surface
Ceramic surface colour
Black
Flush
Surface-mounted installation
SmartLine
Heating type
Gas
Easy to clean ceramic glass
Dishwasher-proof pot rests
GasStop
Number of cooking zones
2
